JAS 39C/D Gripen Armament

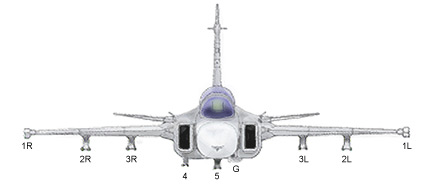

1R 2R 3R 4 5 G 3L 2L 1L
Internal gun
Mauser Bk27 27mm X
Air-to-air missiles
Rb 74 / AIM-9 Sidewinder X X X X X X
Rb 98 / IRIS-T X X X X X X
A-Darter *** X X X X X X
Rb 99 / AIM-120 AMRAAM X X XX**** X X
Meteor BVRAAM * X X X X
R-Darter *** X X X X
Air-to-surface guided
Rb 75 / AGM-65 Maverick X X X X
Rbs 15F AShM X X
Bk 90 (DWS39) Mjölner X X
Taurus KEPD 150/350 * X X
GBU-10/12/16 Paveway II * X X X X X
GBU-22/24 Paveway III ** X X X
GBU-31/32/38 JDAM * X X X X X
Air-to-surface unguided
6x M70 rockets X X X X
Mk 82 500lb bomb XX XX X XX XX
Mk 83 1000lb bomb X X X X X
Misc. stores
530 litre drop tank X X X X X
1275 litre drop tank X X X
Vicon 70-72c recce pod** X X
MRPS (SPK 39) recce pod X
Litening II/III FLIR/LDP X
BOQ-X300 ECM pod X X
Notes:
* only on C/D and upgraded variants
** option for export
*** for SAAF
**** proposed twin AMRAAM launcher on centre station for SwAF

Additional options for future/export versions (predates Gripen NG)

1R 2R 3R 4 5 G 3L 2L 1L
Air-to-air missiles
AIM-132 ASRAAM X X X X X X
Python IV/V SRAAM X X X X X X
AIM-9X Sidewinder X X X X X X
AIM-120C AMRAAM * XX* XX* XX* XX*
Derby BVRAAM X X X X
Air-to-surface guided
NSM X X
AGM-154 JSOW X X
GBU-22/24 Paveway III X X X
GBU-31/32/38 JDAM X X X X X
GBU-39 SDB XX XX X XX XX
Brimstone XX XX X XX XX
Air-to-surface unguided
Mk 84 2000lb bomb X X X
Misc. stores
RECCELITE recce pod X X
FLIR/LDP X
ECM pod X X
